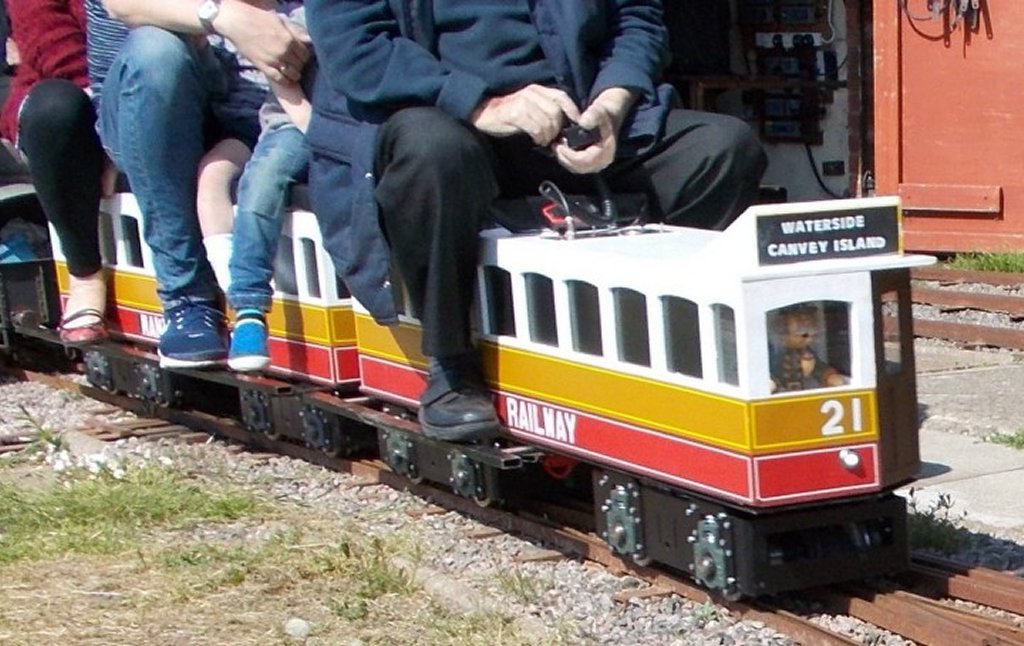

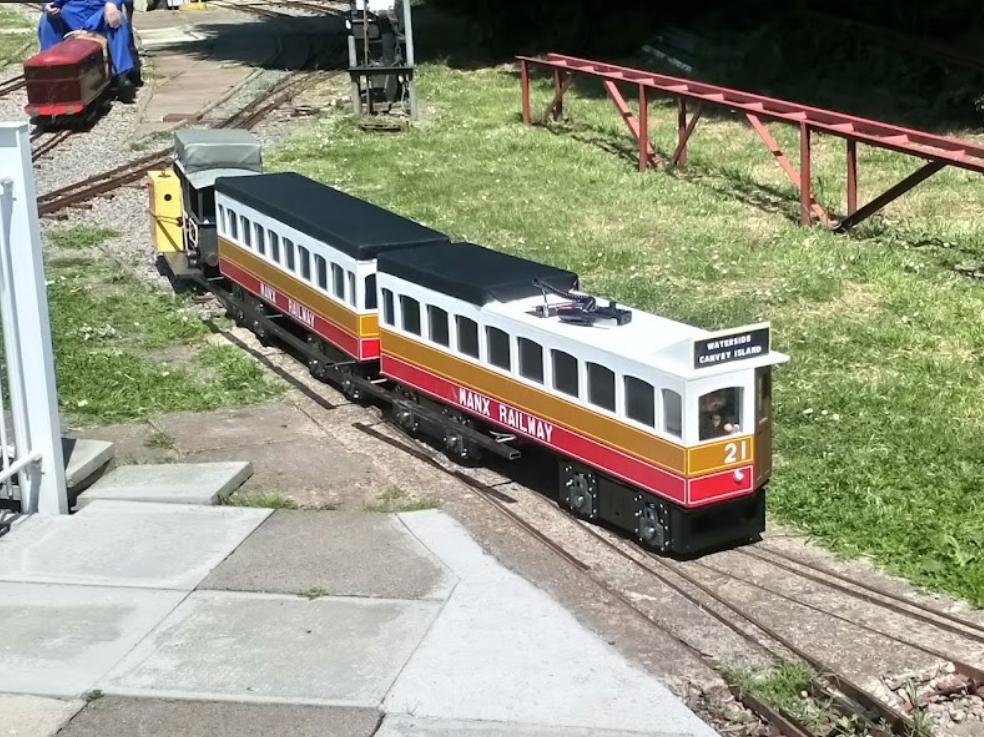

The model of the Manx tram above was made within two months from start to finish. All the component parts were drawn on a CAD machine and then the parts were laser cut. It was then a simple matter of assembly.

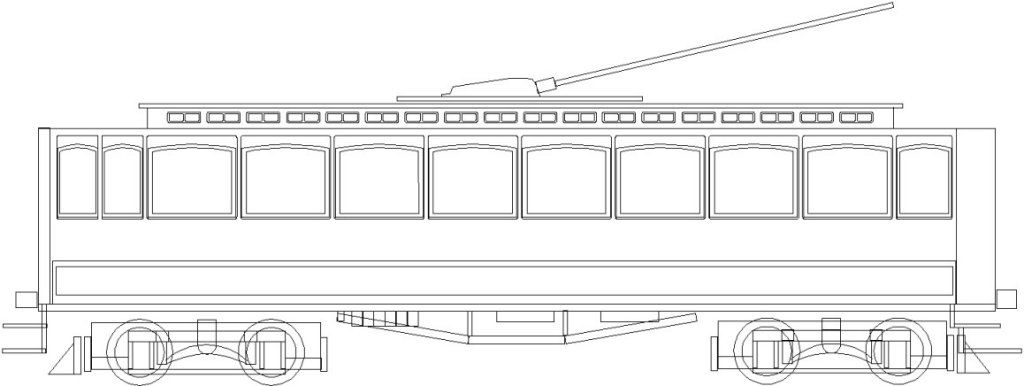

The CAD drawing below was used to produce the side panels. The drawing was produced on the CAD machine as a full-size drawing it was then scaled down to meet the requirements of the modeller.
